As an electrical engineering professional with over 20 years of experience designing power systems for data centers, medical equipment, and industrial applications, I have specified thousands of IEC 60320 power cords. These standardized IEC power cables form the backbone of safe, interchangeable AC power delivery worldwide.
This comprehensive encyclopedia guide covers everything from fundamental principles to advanced selection strategies for IEC C13 power cords, IEC C5 power cables, IEC C7 figure 8 cords, IEC C19 server power cords, and related variants. Whether you manage enterprise IT infrastructure or design consumer electronics, understanding these IEC connectors ensures compliance, reliability, and operational efficiency.
What Are IEC 60320 Power Cords?
IEC 60320 power cords represent the international standard for non-locking appliance couplers, governed by the International Electrotechnical Commission (IEC). These IEC power cables connect AC mains to equipment rated up to 250V, with current limits typically up to 16A internationally or 20A in North America.
The core innovation lies in modular design:
- Wall Plug (country-specific) → IEC Connector (standardized) → IEC Inlet on device.
Key Advantages:
- Global manufacturing with one chassis design.
- Simplified logistics and field replacement.
- Enhanced safety through standardized pin shrouding and polarization.
- Reduced inventory complexity for OEMs.
This separation allows manufacturers to ship products globally and add localized IEC power cords at the point of distribution.
Understanding the IEC 60320 Standard
The IEC 60320 standard defines appliance couplers for household and similar purposes. It specifies mechanical, electrical, and thermal requirements to ensure interoperability and safety.
Naming Convention:
- Odd numbers (C13, C5, C7, C19) refer to female connectors on the cable.
- Even numbers (C14, C6, C8, C20) refer to male inlets on equipment.
Temperature Classifications:
- Cold conditions (70°C): Standard C13/C14, C19/C20.
- Hot conditions (120°C): C15/C16 with safety notch.
- Very hot conditions (155°C): Specialized C15A/C16A.
Connector Specifications Table:
| Connector Pair | Grounding | Max Current (Intl / NA) | Max Voltage | Max Pin Temp | Typical Use Cases |
|---|---|---|---|---|---|
| C5 / C6 | Yes | 2.5A / 10A | 250V | 70°C | Laptop adapters |
| C7 / C8 | No | 2.5A / 7-10A | 250V | 70°C | Consumer AV |
| C13 / C14 | Yes | 10A / 15A | 250V | 70°C | PCs, monitors |
| C15 / C16 | Yes | 10A / 15A | 250V | 120°C | High-heat devices |
| C19 / C20 | Yes | 16A / 20A | 250V | 70°C | Servers, PDUs |
Note: North American ratings (UL) often exceed international (IEC/VDE) due to lower 120V systems. Always apply an 80% derating rule for continuous loads.

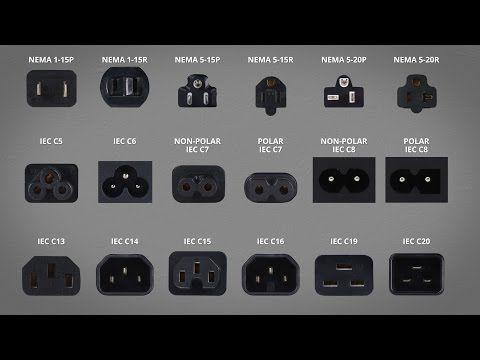

IEC Connector Types Explained
Engineers identify IEC connector types by shape, pin count, and keying. Compatibility is critical — mismatching can cause safety hazards or equipment damage.

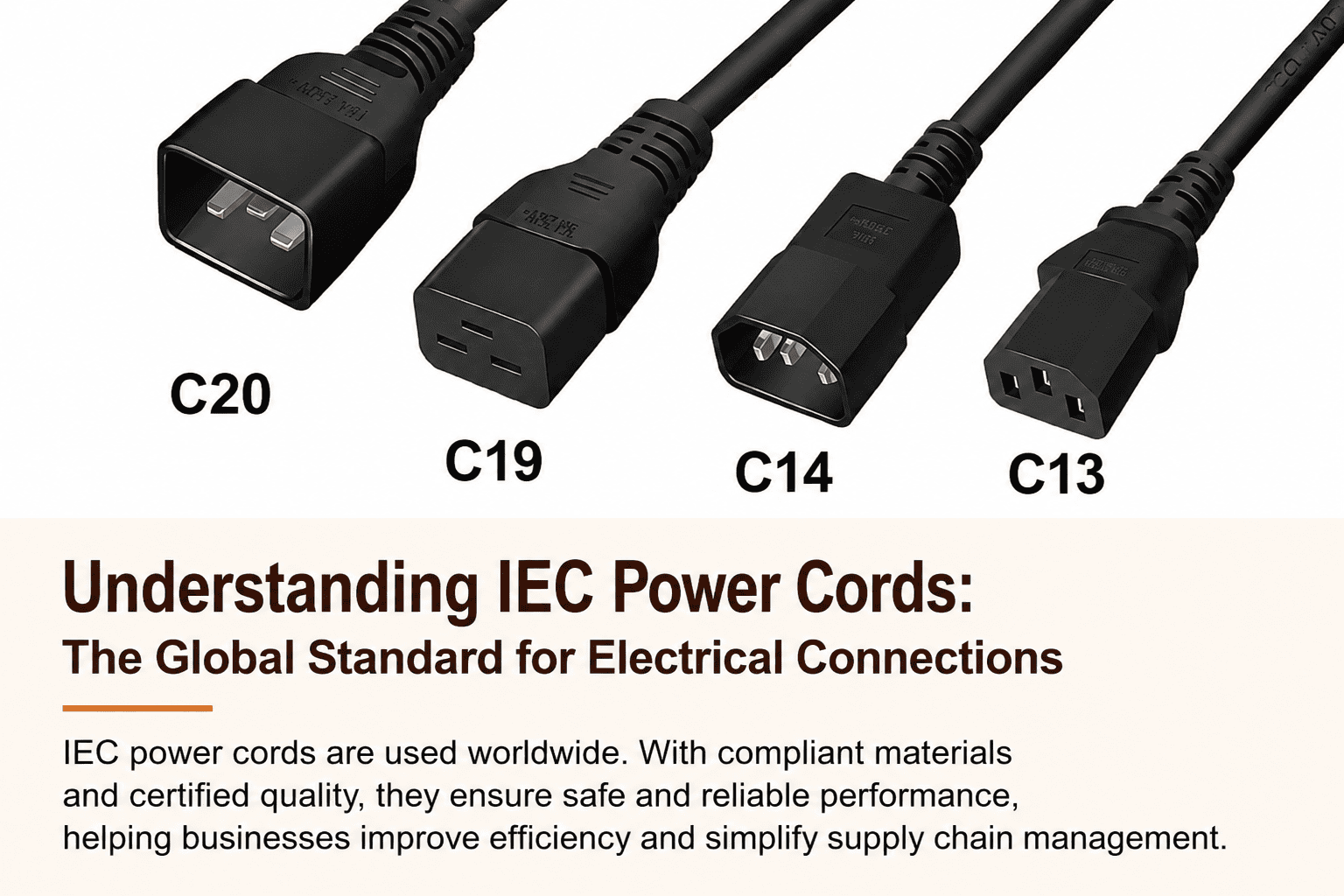

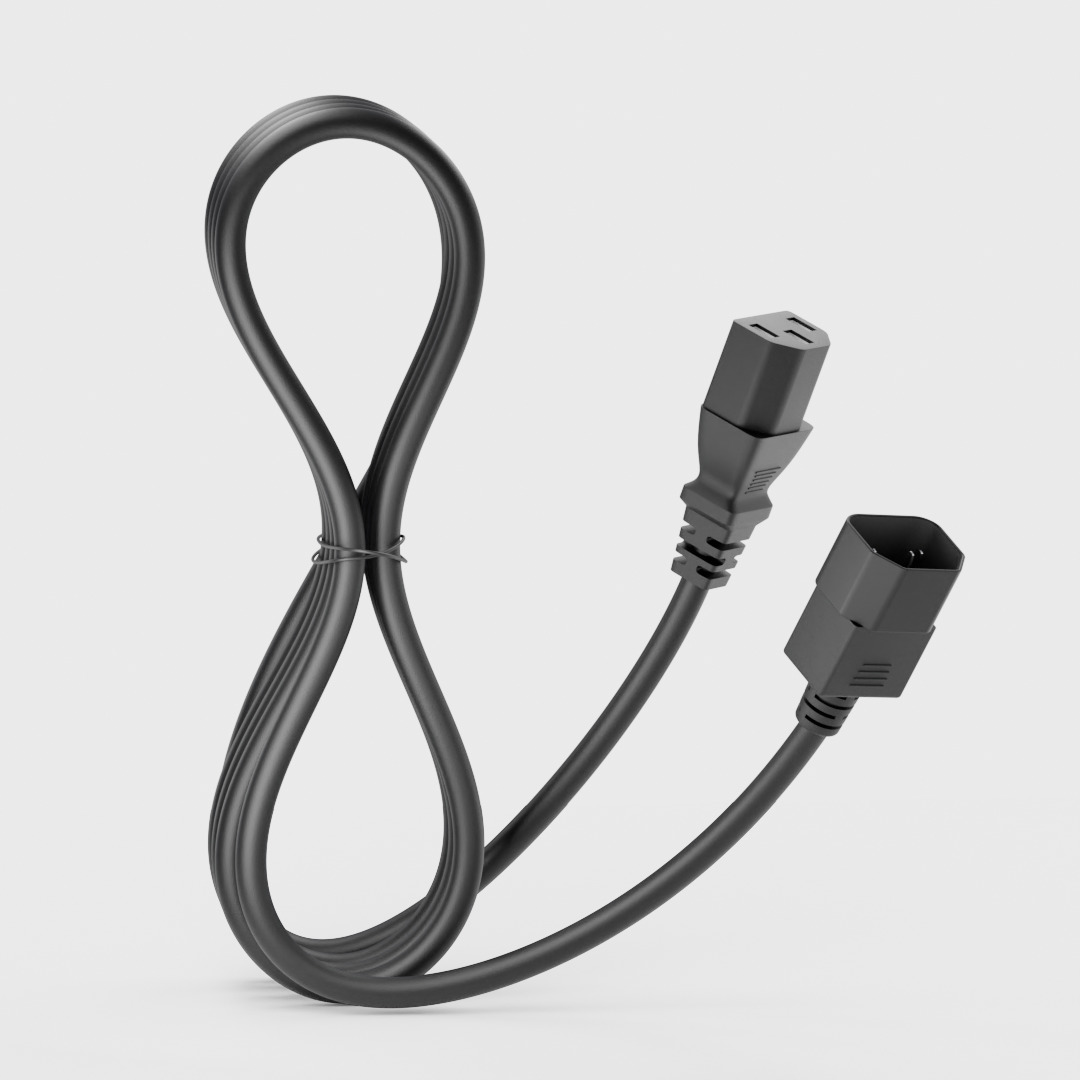

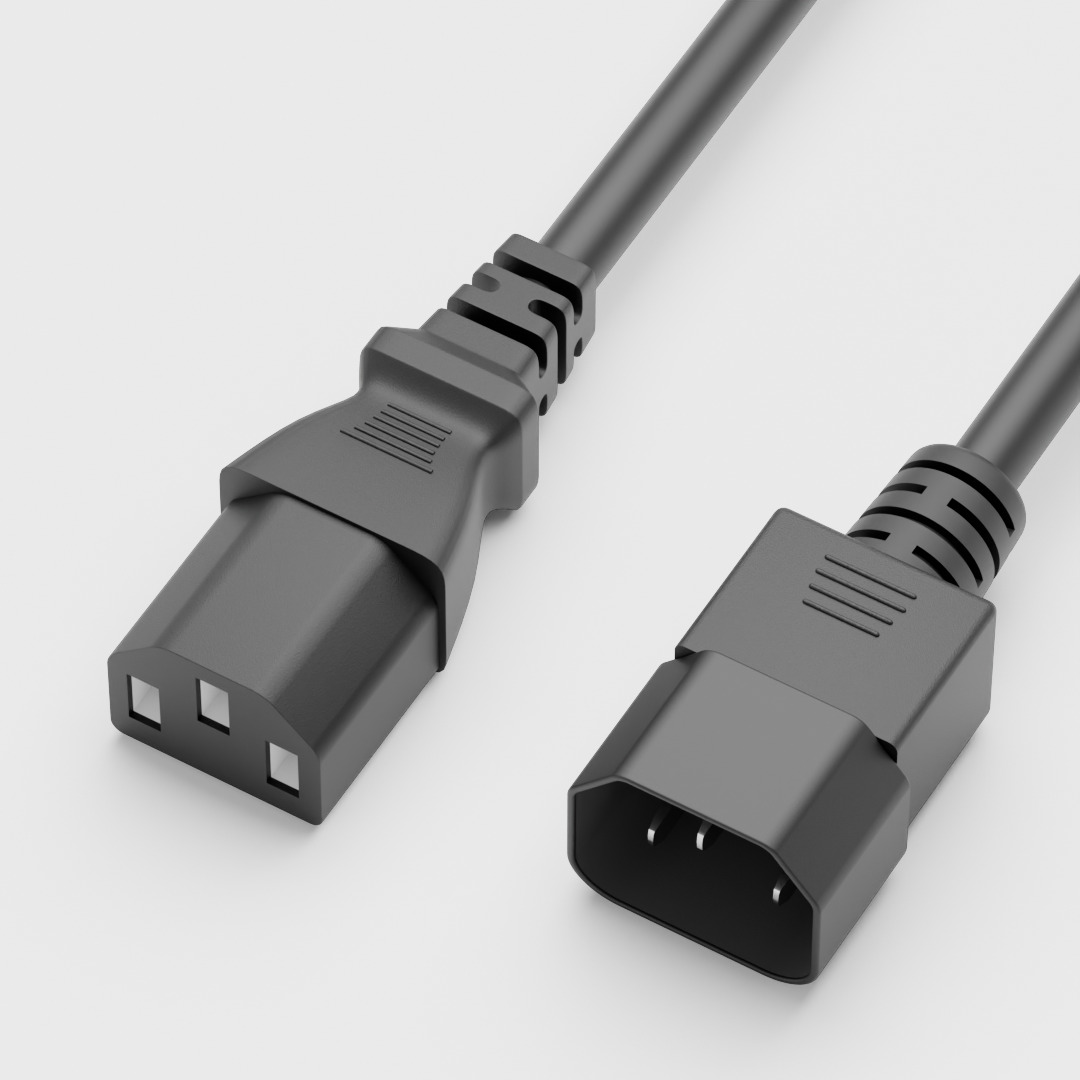

IEC C13 / C14 Power Cords
The IEC C13 power cord is the most common "computer power cable." This grounded 3-pin connector supports 10A/250V internationally and 15A in North America.
Primary Applications:
- Desktop PCs and monitors.
- Network switches and routers.
- Basic UPS and PDU connections.
Expert Insight: In high-density racks, I recommend UL-listed IEC C13 power cords with 16AWG or thicker conductors for minimal voltage drop.

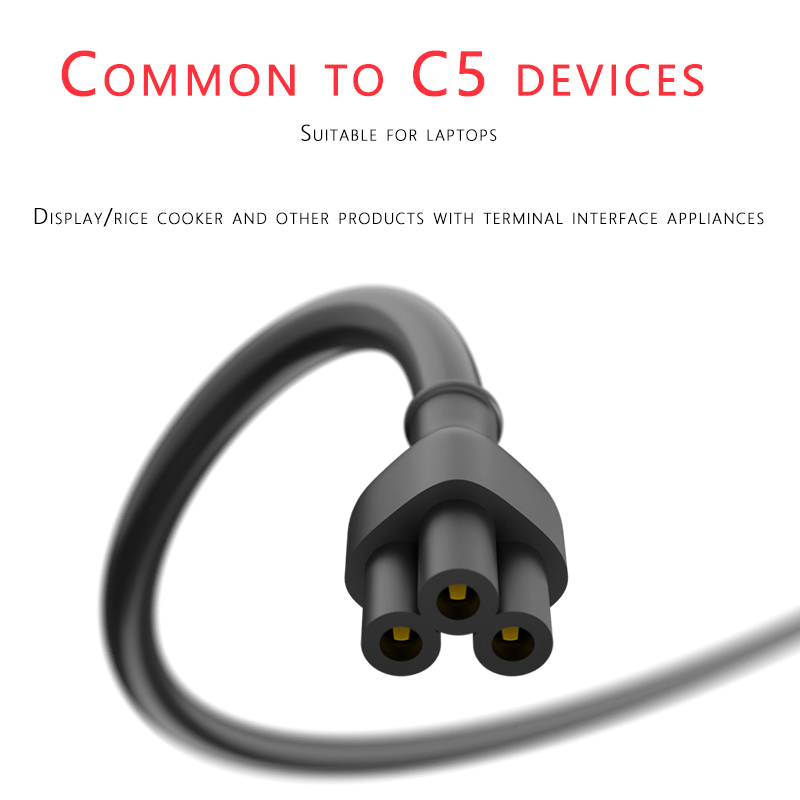

IEC C5 Cloverleaf Power Cords
Known as cloverleaf or Mickey Mouse power cables, IEC C5 power cords offer a compact grounded solution for low-power devices (2.5A intl / 10A NA).
Applications:
- Laptop power bricks.
- Portable projectors and peripherals.
Practical Tip: Prioritize strong strain relief for mobile use to prevent conductor fatigue.

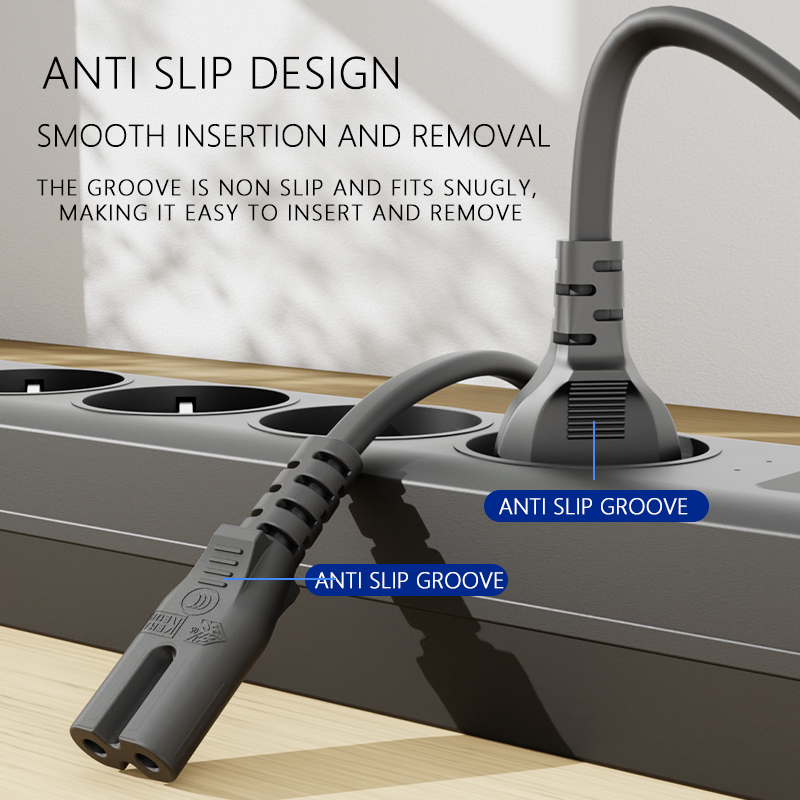

IEC C7 Figure 8 Power Cords
The IEC C7 figure 8 cord is an ungrounded 2-pin design for double-insulated equipment. It comes in polarized (squared edge) and non-polarized versions.
Applications:
- Flat-screen TVs and streaming devices.
- Game consoles and audio systems.
Polarized variants ensure correct line/neutral orientation for sensitive electronics.
IEC C15 High Temperature Power Cords
IEC C15 power cords address environments where standard cables fail. The key difference from C13 is a mechanical notch that prevents insertion into incompatible inlets.
C13 vs C15 Comparison:
- C13: 70°C max, no notch.
- C15: 120°C max, with safety notch.
Applications: Commercial kettles, high-wattage networking gear, and kitchen equipment.
IEC C19 / C20 Server Power Cords
For high-current needs, IEC C19 server power cords deliver 16A/250V internationally or 20A in North America. Their rectangular profile supports demanding loads.
Applications:
- Enterprise blade servers and storage arrays.
- High-capacity PDUs and UPS systems.
- Medical imaging equipment.
New Section: Trends in Data Center Power Management (2025–2026)
With the rise of AI workloads, data centers increasingly adopt locking IEC C13 and C19 variants. The global locking power cord market is projected to grow from $2.8 billion in 2025 to $4.9 billion by 2034 (CAGR 6.4%), driven by hyperscale deployments and safety regulations.
Case Study: A major cloud provider standardized on colored locking IEC C19 power cords for A/B redundant feeds, reducing accidental disconnections by over 90% during maintenance.
Image Suggestion: Infographic showing data center rack power distribution with colored cords. Alt text: "Modern data center IEC power cord deployment example.
IEC Power Cord Certifications Explained
Compliance is non-negotiable. Look for these marks:
- UL / CSA: North America.
- VDE: Europe.
- CCC / PSE / KC / SAA: Asia-Pacific markets.
Certified cords ensure proper insulation, conductor sizing, and thermal performance. Always verify markings on the jacket.
IEC Power Cord Specifications and Wire Types
Choose based on environment:
- North America: SJT/SVT, 18/16/14 AWG.
- International: H05VV-F (PVC), H05RN-F (rubber for harsh conditions), 0.75–1.5 mm².
Thicker gauges reduce voltage drop over long runs.
How to Choose the Correct IEC 60320 Power Cord
Follow this 5-step expert process:
1. Calculate Load — Check nameplate and derate 80% for continuous use.
2. Assess Temperature — Select C15 for hot zones.
3. Match Interface — Confirm inlet type on equipment.
4. Specify Cable — Length, gauge, jacket material.
5. Verify Certifications — Match target markets.
Pro Tip: In vibration-prone areas, use locking mechanisms.
IEC Power Cord Applications by Industry
- IT/Data Centers: C13 for general, C19 for high-power.
- Medical: IEC 60601-1 compliant cords with low leakage.
- Industrial: Rubber-jacketed for chemical/oil resistance.
- Consumer: C7 and C5 for lightweight devices.
Custom IEC Power Cord Manufacturing Services
For specialized needs, OEM services offer custom lengths, angles, colors, and locking features. Partnering with experienced factories ensures RoHS/REACH compliance and fast turnaround.
Image Suggestion: Custom angle-molded C13 cord examples. Alt text: "Custom IEC power cord manufacturing options."
Frequently Asked Questions About IEC Power Cords
What is the difference between IEC C13 and C15?
C13 is rated for 70°C (cold conditions). C15 supports 120°C with a safety notch to prevent mismatches.
Are IEC power cords universal?
Device-side connectors are standardized globally, but wall plugs must match local standards.
What is a figure 8 power cable used for?
Ungrounded consumer electronics like TVs and consoles (IEC C7/C8).
Can I use a C13 on high-power servers?
Only if the PSU is rated for it. Most high-density servers require C19/C20.
How do I identify locking IEC power cords?
They feature clips or latches on standard C13/C19 bodies for vibration resistance.
Conclusion
Mastering IEC 60320 power cords empowers better decisions in equipment design, procurement, and deployment. From everyday IEC C13 power cords to robust IEC C19 server power cords, proper selection prevents failures and ensures compliance. For custom solutions or bulk requirements, consult certified suppliers who prioritize quality and testing.
Call to Action: Need help selecting the right IEC power cable for your project? Evaluate your equipment specs and reach out to trusted manufacturers for samples or technical consultation.
